Motorola DTR700

Motorola Solutions dtr700
  • Motorola Solutions dtr700 1
  • Motorola Solutions dtr700 2
  • Motorola Solutions dtr700 3

Motorola Solutions

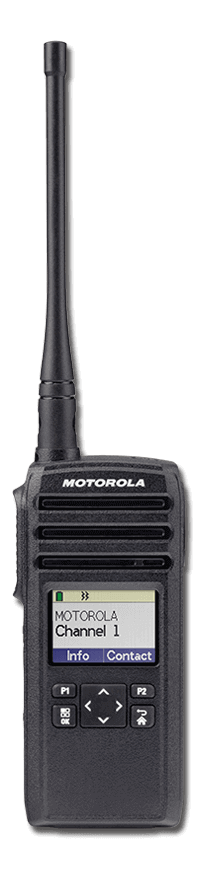

DTR700

Motorola's DTR Series radios are now more reliable than ever - enabling interference-free, private communications to help your team stay focused while keeping communications private.

With its slim, rugged design the DTR700 digital two-way radio is equipped with 50 channel capacity. It is IP54 rated and operates at 900 MHz. A full-graphic color display and intuitive navigation menu help you quickly locate all radio features. The DTR700 offers flexible communication options, including Digital One-to-One Calling and Digital One-to-Many Calling. The DTR700 also provides great coverage, long battery life and digital audio quality that is loud and clear audio wherever you are.

Frequency Band:
900 MHz

Frequency Range:
900 MHz ISM FHSS

Power Output:
1 W

Number of Channels/Groups/Zones:
50 Channels

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
16.5 hrs

Dimensions H x W x D (with standard battery)
5.06” H x 2.2” W x 1.06” D
(128.5mm H x 56mm W x 27mm D)

Weight (with standard battery)
7.87oz. (223 g)

Keypad / Keys
Limited

Display
Full, Color

Operating temperature
-30C to +60C

Mil spec
810 D, 810 C, 810 E, 810 F, 810 G

IP Standards
IP54

Request A Quote


Key features

  • Supports digital communications
  • 900 MHz
  • 50 channels
  • 1.0 Watt Output Power
  • License free, hassle free
  • Slim, rugged design
  • Prominent functional keys

Interference free, private communications
DTR Series radios give you peace of mind and keep your team focused on the task at hand, by making your communications more private. To take advantage of Private Communications, you can quickly set up your radio fleet with a unique Radio Profile ID Number. By choosing from 10,000 available codes, you can assure privacy from other neighboring radios. Leverage Frequency Hopping Spread Spectrum (FHSS) technology for more reliable and private communication when compared to standard analog radios.

Designed for business operations, the DTR Series radio will free your time from regulatory paperwork and licensing applications and reduce your costs by saving on frequency and radio licensing fees.

Popular with these industries:

  • Education
  • Hospitality
  • Property Management
  • Restaurants
  • Retail
Motorola PMAF4024

PMAF4024

900MHZ (902-928MHZ)

Motorola PMNN4578

PMNN4578

Li-ion 2500 mAh, 3.7v Li-ion 2500 mAh, 3.7v

Motorola PMLN7939

PMLN7939

Swivel Clip Holster

Motorola PMPN4469

PMPN4469

Single Unit Charger

Motorola PMPN4465

PMPN4465

6-Pocket Multi Unit Charger

Motorola HKLN4604

HKLN4604

Swivel Earpiece with in-line microphone and push-to-talk

Motorola HKLN4599

HKLN4599

Earpiece with in-line microphone and push-to-talk

Motorola HKLN4601

HKLN4601

Surveillance Kit with in-line microphone and push-to-talk

The Motorola DTR700 is available in the following models.

  • DTS150NBDLAA 900MHz, Limited Keypad
